Technical Parameters |
|
|
Model: |
LAWSON-2C |
|
Pulse Form: |
Exponential Decay |
|
High Voltage Output Voltage: |
Stored energy voltage can be set freely from 401V to 2500V with an accuracy of 1V. |
|
Low Voltage Output Voltage: |
Stored energy voltage can be set freely from 10V to 400V with an accuracy of 1V. |
|

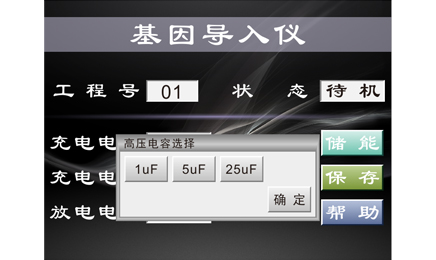

High Voltage Capacitance: |
There are seven settings available: 1μF, 5μF, 25μF, as well as their combinations such as 6μF, 26μF, 30μF, and 31μF. These settings can be adjusted freely. |
|
Low Voltage Stored Energy Capacitance: |
There are 63 settings available: 25μF, 50μF, 100μF, 200μF, 400μF, 800μF, as well as their combinations such as 125μF, 150μF, 175μF, 200μF, up to 1575μF. The minimum capacitance is 25μF with a step size of 25μF. |
|
Discharge and Connection Resistance: |
There are 32 settings available: 50Ω (fixed), 50Ω, 100Ω, 200Ω, 400Ω, 800Ω, and ∞, as well as their combinations such as 50Ω, 100Ω, 150Ω, up to 1600Ω. These settings can be adjusted freely. The minimum resistance is 50Ω, and the maximum is 1600Ω, with a step size of 50Ω. There is also an infinite resistance setting available. |
|
Power Supply: |
Single phase 220V, 50HZ, 200W |
|

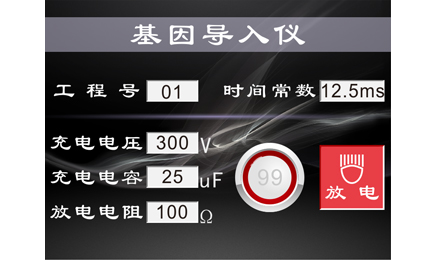

Time Constant: |
With adjustable RC time constant |
|
Main Unit Net Weight: |
12.8kg |
|
Package Size: |
640*380*350 mm |
